পণ্যের বিবরণ:
|
| মডেল: | এমএফ-এসডিএম 360 | গতি: | 1000 ভলিউম/ঘন্টা |
|---|---|---|---|
| হাইলাইট: | ছাঁচ ছাড়া | বাঁধন প্রস্থ: | 360 মিমি |
| ভোল্টেজ: | 380/220 ভি, 3 পিএইচ | ওয়ারেন্টি: | 1 বছর |
| উপকরণ: | ডাবল লুপ ধাতব তার | ব্যবহার: | তারের নোটবুক, ক্যালেন্ডার তৈরির মেশিন |
| বিশেষভাবে তুলে ধরা: | CE twin coil wire binding machine,360mm spiral book binder,25pcs/min wire binding equipment |
||

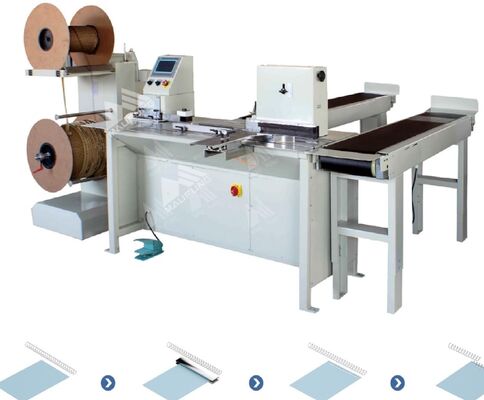

Twin Coil notebook Calendar Binding Machine MF-SDM360is used for binding double wire books, notebooks, wall calendars, etc. It can bind
1/4"-1¼" without changing binding molds. With the integration of automatically unwinding the spool, loops cutting, conveying and closing, it increased the production efficiency and lowered the cost remarkably. Controlled by PLC. Easy to operate and adjust. There are no tools to change as the closing press is adjustable for all the diameters. Especially suitable for binding the notebooks which the cover is bigger than inner sheet.
| Model | MF-SDM520 |
| Power Supply | 380V/220V, 50HZ |
| Mainframe Power | 2KW |
| Binds sheet Width(max) | 507mm |
| Binds Double Coil Standard | P3:1 3/16″-9/16″ P2:1 5/8″-1″ |
| Work Speed | 25PCS/minute |
| Machine Dimensions(L×W×H) | 1030×770×1200mm |
| Worktable Dimension | 600mm×300mm |
| Air Pressure | 6-8pa |
| Machine Weight | 280kg |
